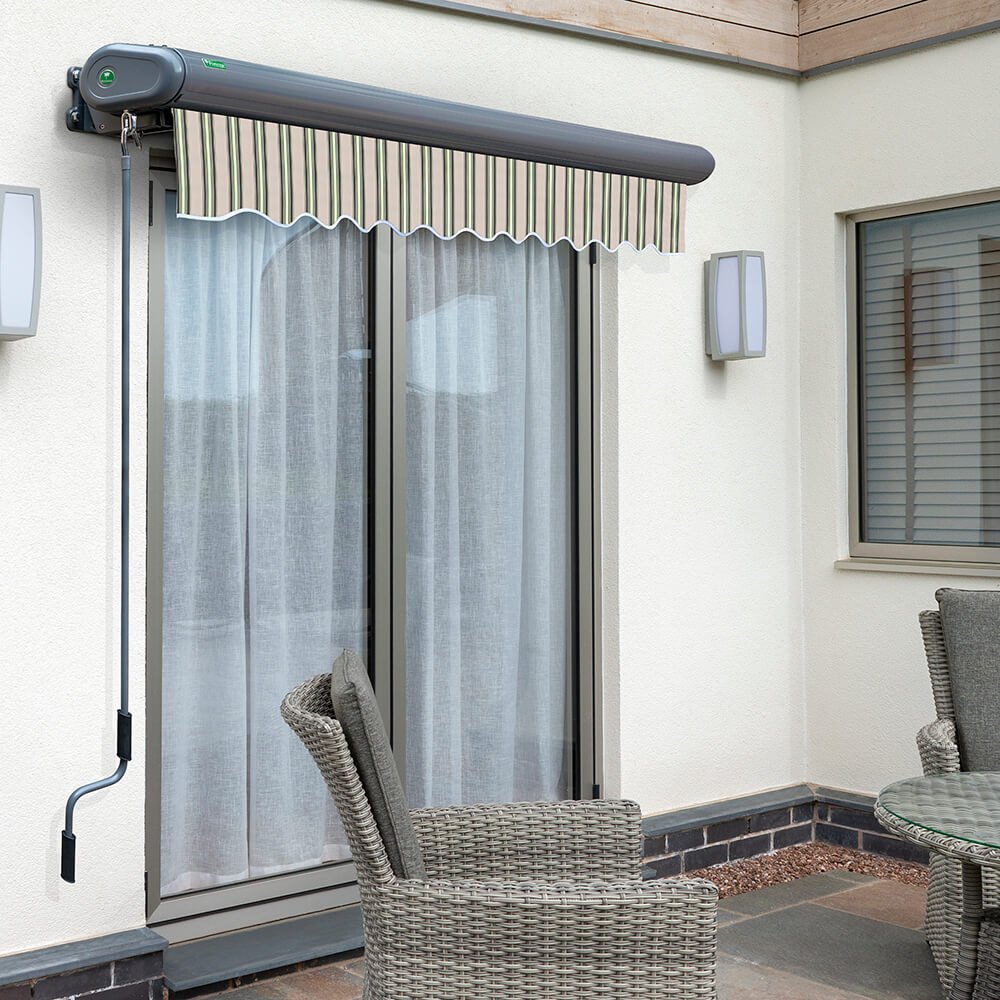

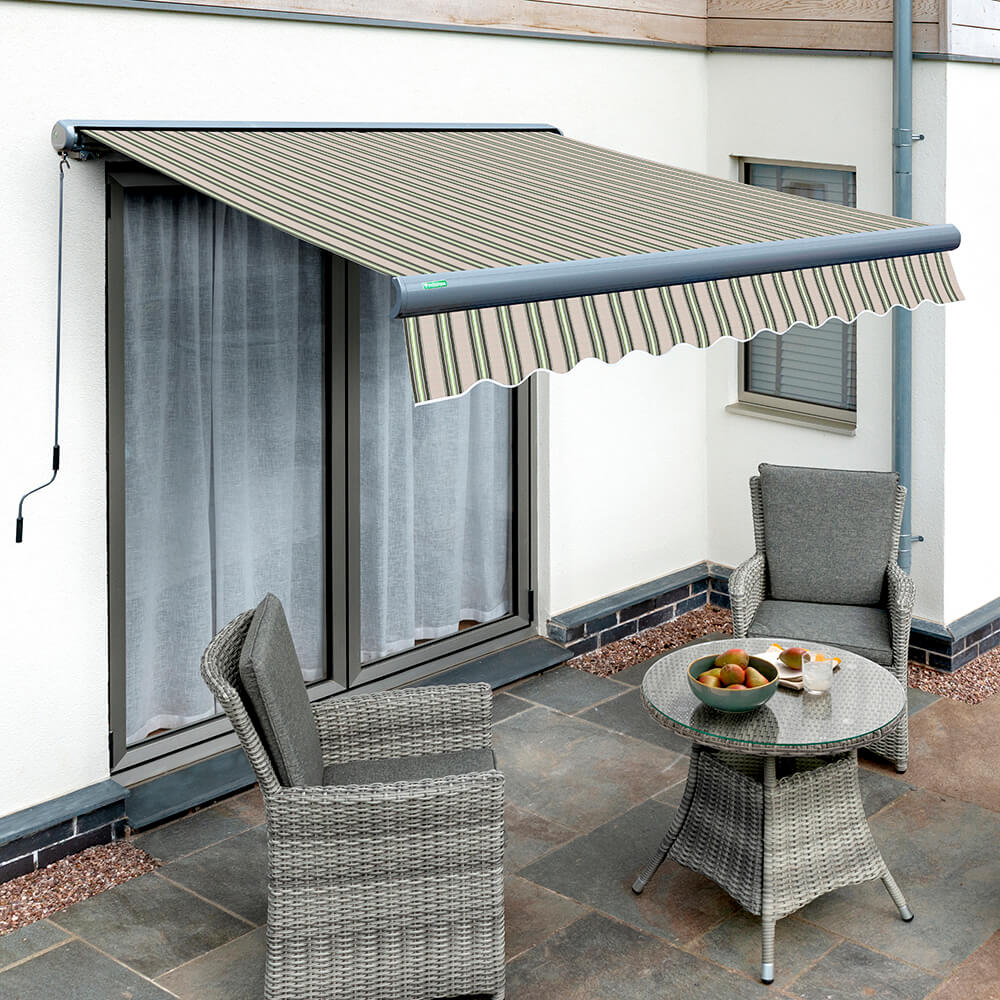

3.0m Full Cassette Electric Multistripe Awning (Charcoal Cassette)
Despatch in 1-2 working days
Delivery £14.99
Specifications
Style | Full Cassette Charcoal |
Width | 3.0m |
Projection | 2.5m |
Colour | Multi-Stripe |
Fabric | Waterproof, UPF 50+, 300gsm Polyester (blocks over 98% of harmful UV rays) |
Winder | The winder is located on the left hand side of the awning |
Motor | Electric motors made by Somfy Group |
Product Instruction Manual
Download InstructionsProduct Information
Why choose this awning?
- Top of the range, premium option
- Metal cassette cover encloses entire awning when rolled in
- Classic design, heavy duty build with superior quality materials
- Powder coated anthracite (RAL7011) aluminium frame to ensure longevity
- Waterproof, UPF 50+ fabric (blocks over 98% of harmful UV rays)
- Manual override if power-cut occurs
- 2 Year Warranty
Our awnings combine excellent quality with superb value for money
Our full cassette awnings are heavy duty awnings, ideal for both residential and commercial use, including shops and pubs. They combine contemporary design with superior quality and great value for money. Finished to a very high specification, they have a strong powder coated anthracite aluminium frame with retractable arms containing coated steel cables. Full cassette awnings are the strongest of all of our awnings. The integrated gutter in the front bar also allows water to run off easily.

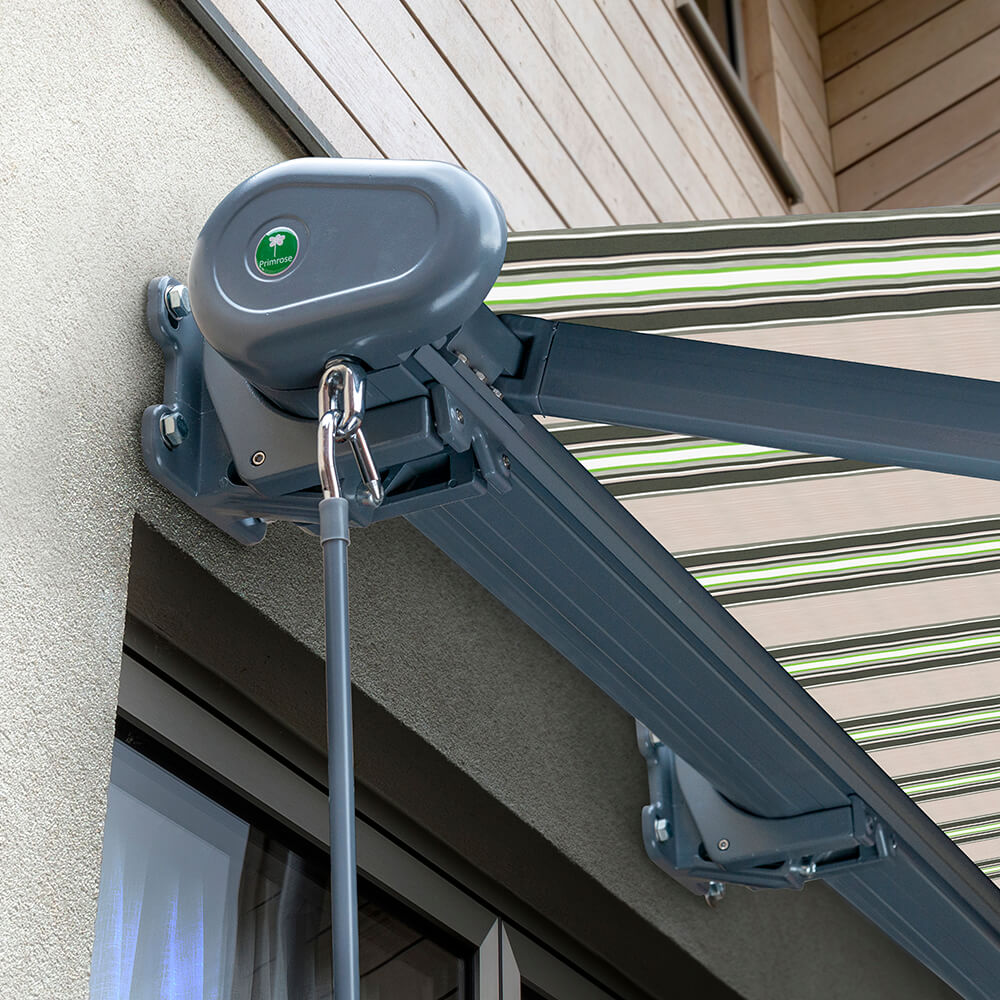

The awning can be opened and closed easily and smoothly using the winding handle on the left hand side (see pictures to the right). It can be opened as much or as little as you like up to the maximum projection. The awning is adjustable to enable you to alter the slope of the awning approximately 15-30 degrees from the horizontal.

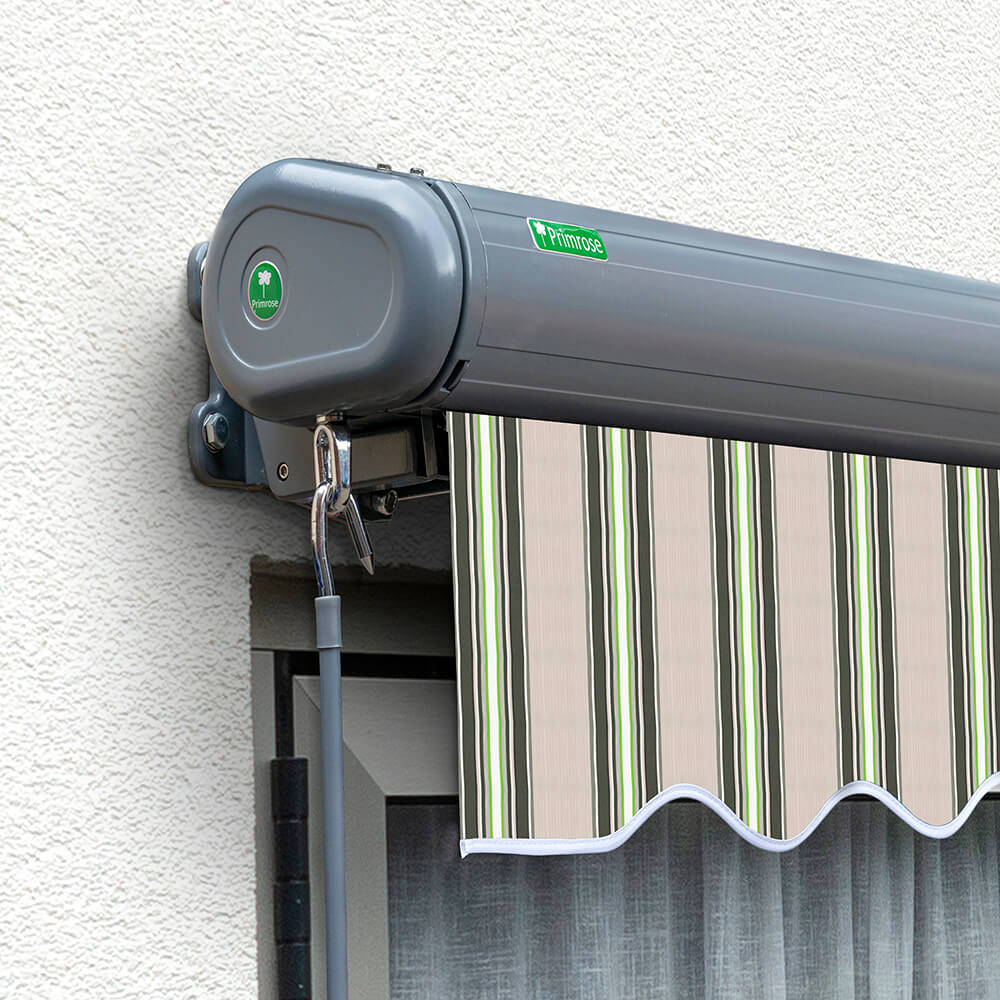

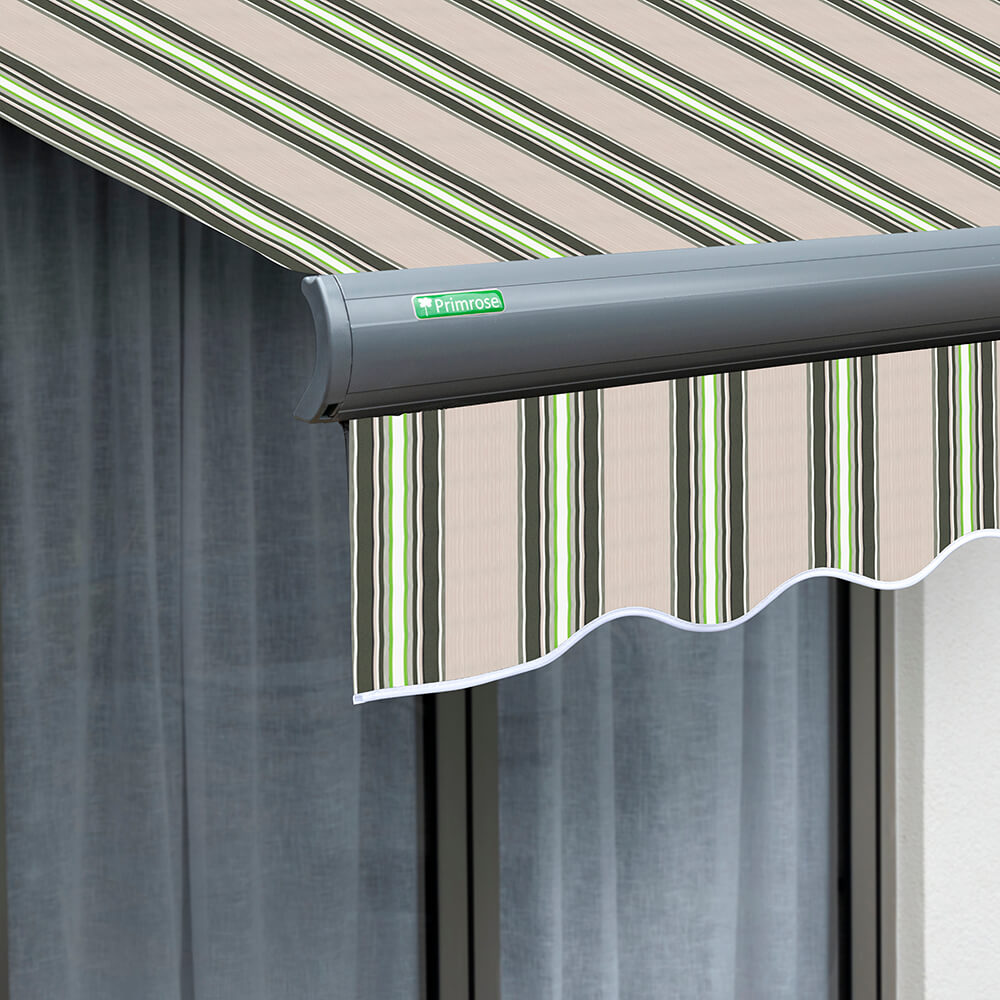

'Full cassette' means that the awning retracts into a metal cover for complete protection. Note: The valance (frilly bit on the front bar) will be left exposed but can be easily detached if preferred.

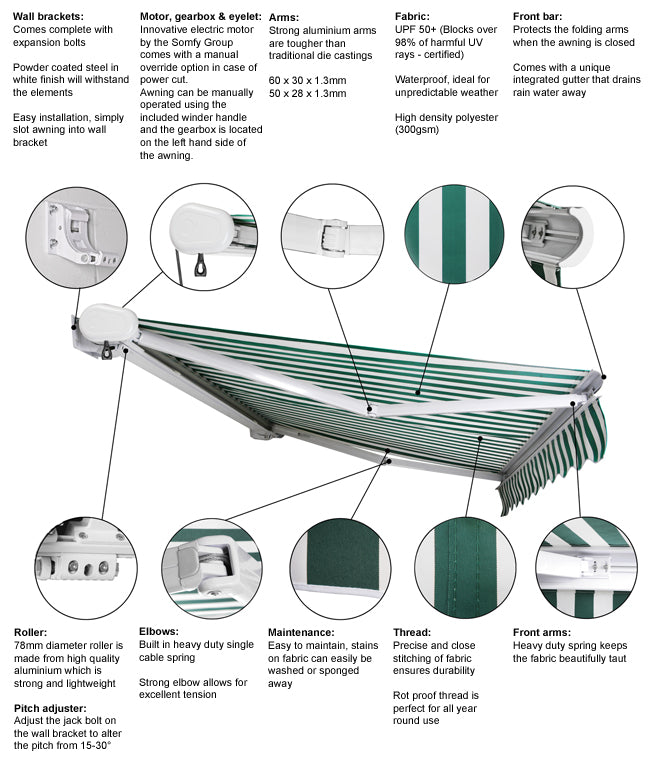

- Aluminium roller: 78mm diameter
- Aluminium front bar: 120mm x 64mm
- Aluminium support arms: 59mm x 31mm, 51 x 26mm
- Comes with winder, wall brackets and bolts
- Hardwearing waterproof 300gsm polyester UPF 50+ fabric (blocks over 98% of harmful UV rays)
- Awning arms manufactured in forged aluminium. Arm angle can be adjusted approx 15 - 30 degrees from the horizontal
- Twin steel cables are passed through the articulated joint, this allows heavy tension in the arms
- Easy maintenance, easy to clean with sponge and cloth
- Easy to install - DIY-er can fit one of our awnings within an hour or two
- Electrostatically powder coated finish in anthracite (RAL7011), to ensure longevity
Installation & Maintenance
Our awnings are designed to attach to the wall and are supplied with two or three brackets (depending on the size of the awning you order) and expandable fixing bolts.
The awnings are easy to fit and come with full fitting instructions. With the correct tools they should not take more than two hours to fit. If you would like to read the instructions in advance.Please click here.
Our electric awnings can either be plugged into a socket or they can be wired directly into the mains
