4.0m Budget Manual Awning, Terracotta
Despatch in 4-6 working days
Delivery £39.99
Specifications
Style | Budget |
Width | 4.0m |
Projection | 3.0m |
Colour | Terracotta |
Fabric | Waterproof, UPF 50+, 300gsm Polyester (blocks over 98% of harmful UV rays) |
Winder | The winder is located on the left hand side of the awning |
Product Instruction Manual
Download InstructionsProduct Information
Entry level Budget awning at a cracking price
Great value economy model at a fantastic price. Made to a slightly better specification than most other ‘budget’ awnings on the market (eg ours have a heavier 300g fabric) but not as strong as our Standard model.
The awning can be opened as much or as little as you like up to the maximum projection. The specially designed elliptical arms are adjustable to enable you to alter the slope of the awning from almost horizontal to a relatively steep tilt of approximately 35 degrees from the horizontal. The aluminium front bar ensures the fabric hangs smoothly.
- Easy to install - DIY-er can fit one of our awnings within an hour or two and easy to remove for winter storage if required.
- Easy to project/retract the awning.
- Comes with winder.
- Hardwearing waterproof 300 gsm polyester (Available in a choice of four colours: plain green, ivory, green and white, multi stripe.)
- Easy maintenance, easy to clean with sponge and cloth.

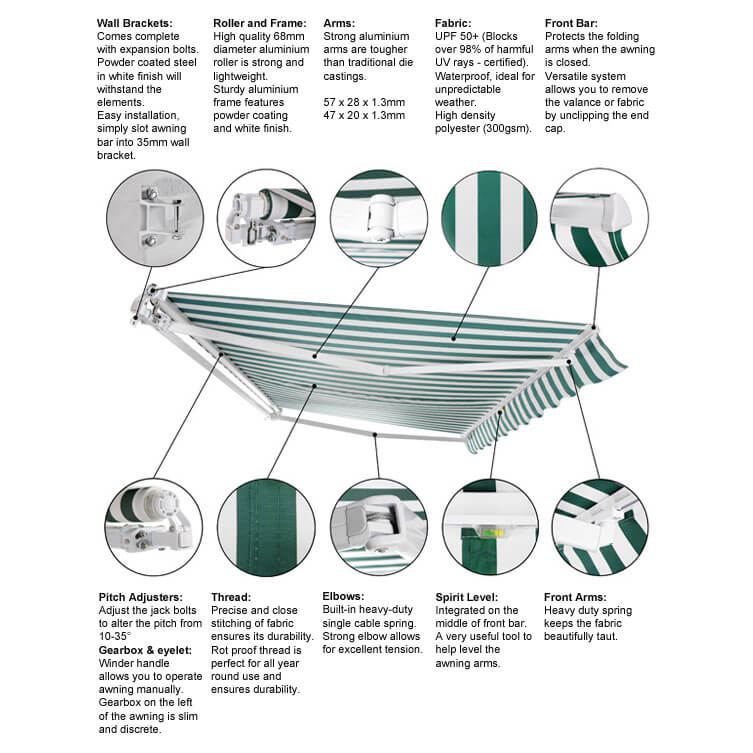

- Aluminium roller: 68mm diameter
- Steel torsion bar: 35mm x 35mm
- Awning arms manufactured in forged aluminium. Arm angle can be adjusted by up to 35 degrees
- Twin steel cables are passed through the articulated joint, this allows heavy tension in the arms
- Complete wall brackets and expansion bolts (power coated) .
- Electrostatically powder coated finish, to ensure longevity.
What’s the difference between Budget manual awning and Standard manual awning?
We have a small range of Budget manual awnings in 2.5m, 3.0m, 3.5m and 4.0m widths. They’re great quality, but not quite the same strong spec as a standard manual awning. The Budget manual awning contains a back torsion bar 35mm x 35mm instead of the stronger 40mm x 40mm bar on a standard manual.
The standard manual awning comes with two additional easy adjustable eyelets. You can use the winder handle to adjust the desired slope/angle of the awning within seconds. With the Budget manual awnings you will have to adjust the slope/angle by loosen the locking nuts and alter jack bolts.
All our awnings come with the correct number of wall mounting brackets as standard. This awning can also be mounted onto ceilings, balconies or overhangs with specially designed ceiling brackets - see our optional extras below.
Installation & Maintenance
Our awnings are designed to attach to the wall and are supplied with two or three brackets (depending on the size of the awning you order) and expandable fixing bolts.
The awnings are easy to fit and come with full fitting instructions. With the correct tools they should not take more than two hours to fit. If you would like to read the instructions in advance.Please click here.
Suitable for attaching to both walls and ceilings or overhangs with our innovative wall bracket (Simply turn the bracket upside down.)
Here is a PDF link where you can get details instructions.
